C200-M5-S17
In stock
SKU
C200-M5-S17
Add to Wish List Add to Compare
Crest-to-Crest

Tech specifications

More Information
SKU C200-M5-S17
Series C
Units Imperial
Spring Type Crest-to-Crest
Operates In Bore Diameter 2.000 in
Clears Shaft Diameter 1.600 in
Load 50 lb
Work Height 0.345 in
Free Height 0.870 in
Wire Thickness 0.018 in
Wire Radial Wall 0.143 in
Spring Rate 95 lb/in
Number Of Waves 4.5
Number of Turns 7
Material 17-7 Stainless Steel

C200-M5-S17

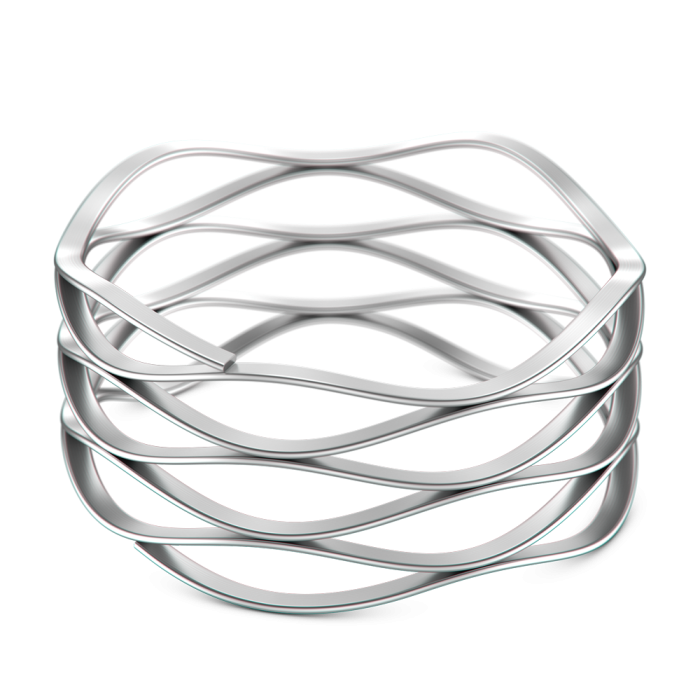

main product photo
Crest-to-Crest Wave Springs are pre-stacked in series, decreasing the spring rate proportionally to the number of turns. Uses are typically applications requiring low-medium spring rates and large deflections with low-medium forces.
