CS137-H10-S17
In stock
SKU
CS137-H10-S17
Add to Wish List Add to Compare
Crest-to-Crest/Shim Ends

Tech specifications

More Information
SKU CS137-H10-S17
Series CS
Units Imperial
Spring Type Crest-to-Crest with Shim Ends
Operates In Bore Diameter 1.375 in
Clears Shaft Diameter 1.030 in
Load 35 lb
Work Height 1.000 in
Free Height 2.000 in
Wire Thickness 0.018 in
Wire Radial Wall 0.133 in
Spring Rate 35 lb/in
Number Of Waves 3.5
Number of Turns 20
Material 17-7 Stainless Steel

CS137-H10-S17

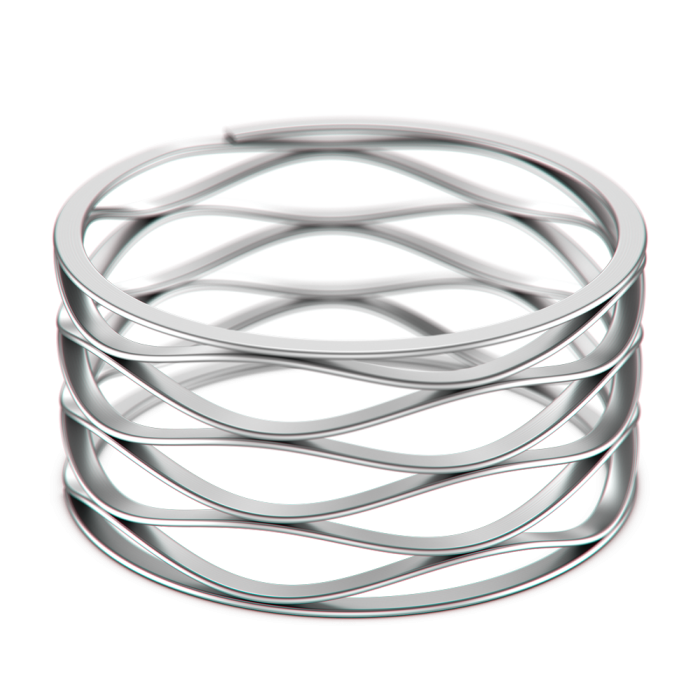

main product photo
Crest-to-Crest Wave Springs with shim ends provide a 360° contact surface when compared to the wave point contact of plain ends. The shim-ends under load, more evenly distribute the springs force upon adjacent components.
