HSM-76-S02
In stock
SKU
HSM-76-S02

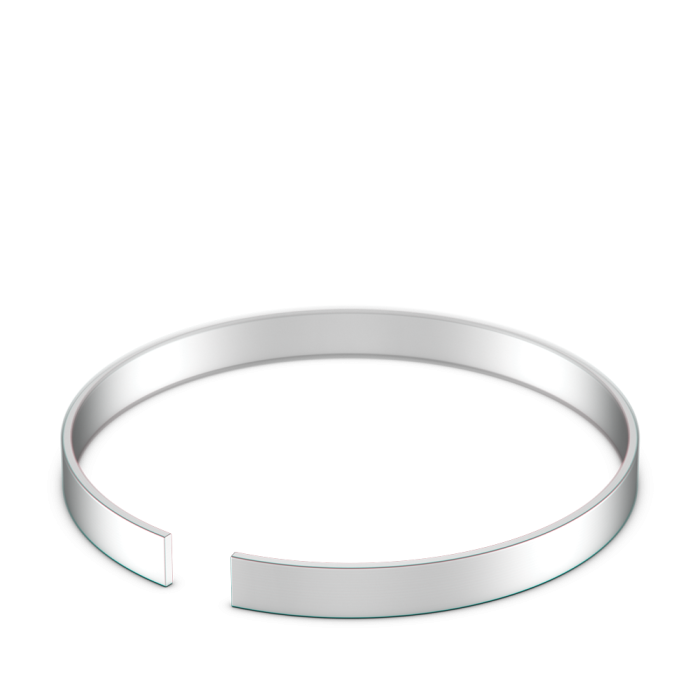

External, Metric Hoopster
Tech specifications
| SKU | HSM-76-S02 |
|---|---|
| Series | HSM |
| Ring Type | External |
| Units | Metric |
| Ring Style | Hoopster (Thin Wall) |
| Shaft Diameter | 76 mm |
| Groove Diameter | 74.86 mm |
| Groove Diameter Tolerance | +/-.15 |
| Groove Width | 5.87 mm |
| Groove Width Tolerance | +.13/-.00 |
| Free Inside Diameter Tolerance | +.00/-.76 |
| Ring Thickness | 5.72 mm |
| Ring Thickness Tolerance | +/-.13 |
| Ring Radial Wall | 1.14 mm |
| Radial Wall Tolerance | +/-.05 |
| Material | 302 Stainless Steel |
| Number of Turns | 1 |
| Free Inside Ring Diameter | 73.34 |
| Square Edge Wire | Yes |
| Groove Yield | 21150 N |
