VHM-100-S02
In stock
SKU
VHM-100-S02

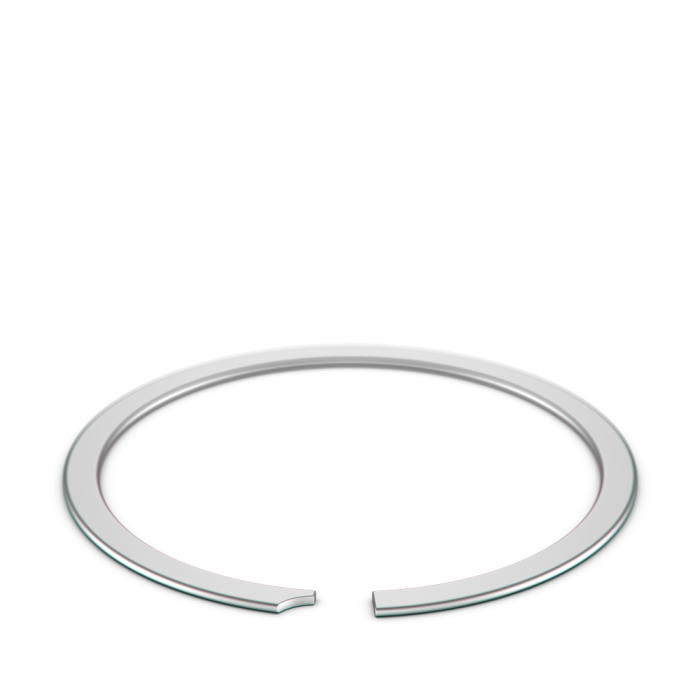

Internal, Metric Light Duty Single Turn, Spirolox
Tech specifications
| SKU | VHM-100-S02 |
|---|---|
| Series | VHM |
| Ring Type | Internal |
| Units | Metric |
| Ring Style | Spirolox (Spiral) |
| Housing Diameter | 100.00 mm |
| Groove Diameter | 102.34 mm |
| Groove Diameter Tolerance | +/-.15 |
| Groove Width | 1.12 mm |
| Groove Width Tolerance | +.08/-.00 |
| Free Outside Ring Diameter | +.76/-.00 |
| Free Outside Diam Tol | +.76/-.00 |
| Ring Thickness | 0.99 mm |
| Ring Thickness Tolerance | +/-.05 |
| Ring Radial Wall | 4.78 mm |
| Radial Wall Tolerance | +/-.13 |
| Material | 302 Stainless Steel |
| Rating | Light Duty |
| Number of Turns | 1 |
| Ring Shear | 90,064 N |
| Groove Yield | 57,021 N |
VHM-100-S02
The VHM Series Spirolox Retaining Ring are specified for light duty, low clearance applications or where axial positioning rather than load carrying is the principal function. These retaining rings are economically produced and easy to use, and are ideal for applications where thrust loads are light duty.
