VSM-270
In stock
SKU
VSM-270

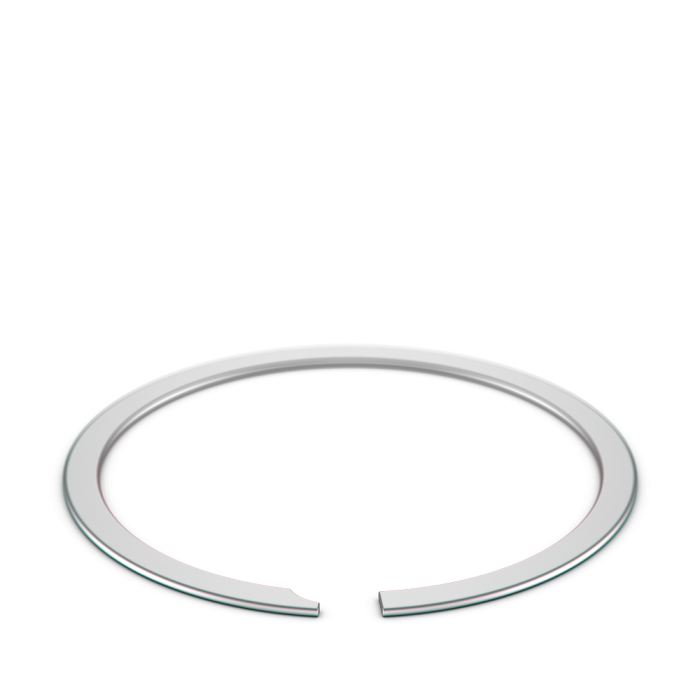

External, Metric Light Duty Single Turn, Spirolox
Tech specifications
| SKU | VSM-270 |
|---|---|
| Series | VSM |
| Ring Type | External |
| Units | Metric |
| Ring Style | Spirolox (Spiral) |
| Shaft Diameter | 270 mm |
| Groove Diameter | 263.25 mm |
| Groove Diameter Tolerance | +/-.20 |
| Groove Width | 2.08 mm |
| Groove Width Tolerance | +.13/-.00 |
| Free Inside Diameter Tolerance | +.00/-1.78 |
| Ring Thickness | 1.93 mm |
| Ring Thickness Tolerance | +/-.05 |
| Radial Wall Tolerance | +/-.15 |
| Material | Carbon Steel |
| Rating | Light Duty |
| Number of Turns | 1 |
| Free Inside Ring Diameter | 260.62 |
| Ring Shear | 451492 N |
| Groove Yield | 444108 N |
VSM-270
The VSM Series Spirolox Retaining Ring are specified for light duty, low clearance applications or where axial positioning rather than load carrying is the principal function. These retaining rings are economically produced and easy to use, and are ideal for applications where thrust loads are light duty.
